Library

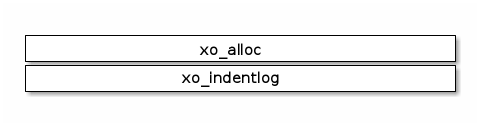

Library dependency tower for xo-alloc:

_images/ditaa-e0ea205220f8ce22e3ca227334ff3148c85fa258.png

Install instructions here

Components

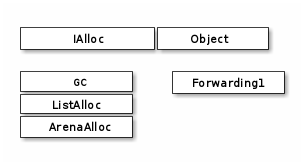

Abstraction tower for xo-alloc components:

_images/ditaa-b917f7162d7439ff67f15d70cb66db0a08823c73.png

  • IAlloc Allocator interface.

  • Object

    Root Object Interface for types participating in garbage collection

  • GC

    Incremental compacting garbage collector.

  • ListAlloc

    Auto-expanding allocator. Contains a collection of ArenaAllocs

  • ArenaAlloc

    Arena allocator (a.k.a bump allocator).

  • Object

    Interface for types that participate in garbage collection

  • Forwarding1

    Forwarding pointer. Supports the Object interface; used internally by GC during evacuation.

Key Points

  • Allocators can be reset, but do not support freeing of individual allocs.

  • GC works with types that implement auxiliary GC-support methods. Such types must inherit Object.

  • A region may uses multiple arenas, but because of allocation activity since the last GC. If necessary, GC will allocate a new to-space with a single arena that’s large enough to accomodate all objects that might survive from a from-space that has acquired multiple arenas. Intent is to scale up to find application’s working set size, then stabilize

Components

Allocators

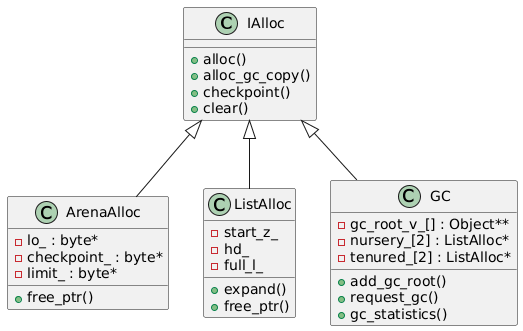

Inheritance

class IAlloc { + alloc() + alloc_gc_copy() + checkpoint() + clear() } class ArenaAlloc { + free_ptr() - lo_ : byte* - checkpoint_ : byte* - limit_ : byte* } IAlloc <|-- ArenaAlloc class ListAlloc { + expand() + free_ptr() - start_z_ - hd_ - full_l_ } IAlloc <|-- ListAlloc class GC { + add_gc_root() + request_gc() + gc_statistics() - gc_root_v_[] : Object** - nursery_[2] : ListAlloc* - tenured_[2] : ListAlloc* } IAlloc <|-- GC

allocators

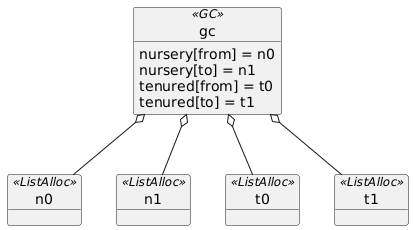

Composition

object gc<<GC>> gc : nursery[from] = n0 gc : nursery[to] = n1 gc : tenured[from] = t0 gc : tenured[to] = t1 object n0<<ListAlloc>> object n1<<ListAlloc>> object t0<<ListAlloc>> object t1<<ListAlloc>> gc o-- n0 gc o-- n1 gc o-- t0 gc o-- t1

allocator composition

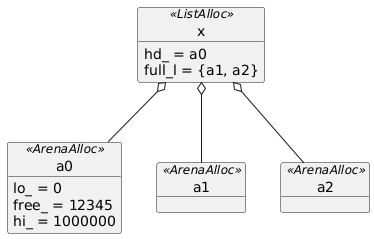

Each ListAlloc composes like this:

object x<<ListAlloc>> x : hd_ = a0 x : full_l = {a1, a2} object a0<<ArenaAlloc>> a0 : lo_ = 0 a0 : free_ = 12345 a0 : hi_ = 1000000 object a1<<ArenaAlloc>> object a2<<ArenaAlloc>> x o-- a0 x o-- a1 x o-- a2

ListAlloc composition

Here a1 and a2 are full, while a0 can still allocate memory.

Objects

class Object { + _is_forwarded() + _offset_destination() + _forward_to() + _destination() + _shallow_size() + _shallow_copy() + _forward_children() } class Forwarding1 { - dest_ : Object* } Object <|-- Forwarding1

objects
